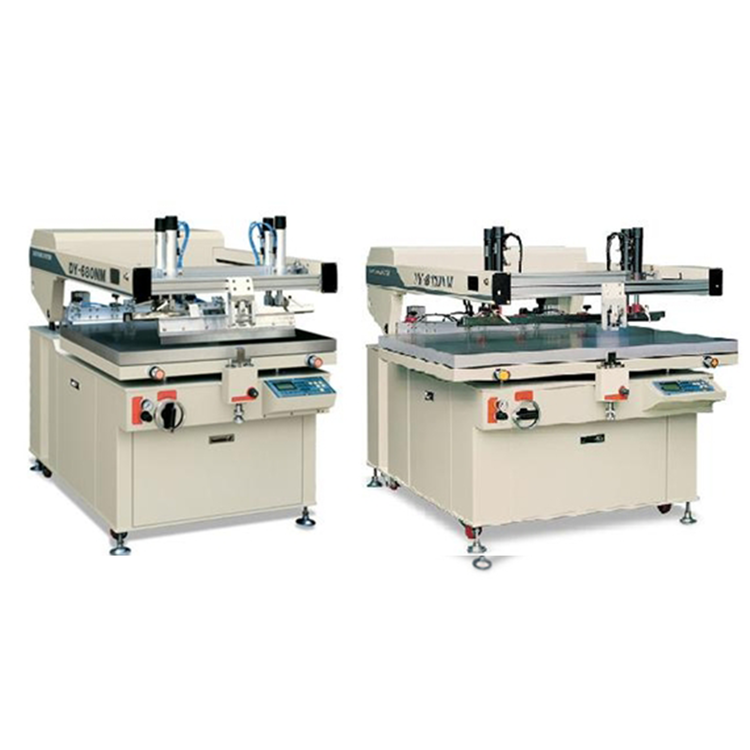

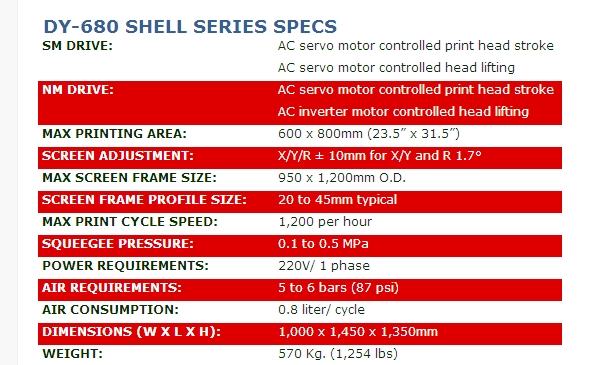

680 반자동 조개타입 SHELL SERIES screen printing machine
DY-680NM clam shell screen print press
DY-8120SM clam shell screen print press
1- SERVO DRIVEN - SCREEN FRAME OPEN & CLOSING
2- SERVO DRIVEN - SQUEEGEE & FLOOD BAR STROKE LENGTH
3- PNEUMATIC - PROGRESSIVE SCREEN LIFT (servo is optional)
DUAL AXIS SERVO DRIVEN These SHELL SERIES presses are available in two different motor drive versions. The “SM” version is the high tech version and it is equipped as a dual-axis servo driven screen press. In the SM screen print machine both the clam shell motion and the print/ flood strokes are controlled via servo-motors. The main advantage of these SM presses is the added ability to fully program the print and flood stroke lengths and memorize these job parameters in the on-board PLC. All job parameters (programs) can be quickly recalled from the screen printers touch screen, allowing for ultra-fast set-ups and job changeovers.
The SHELL SERIES screen printing presses are real smooth performers with your typical industry standard clam-shell screen printer motion to allow for easy sheet loading and fast production speeds.
The SHELL SERIES “NM” models are controlled via DC motor for opening & closing of the print head and via Servo motor for the print/ flood stroke (length). All SM & NM SHELL SERIES screen print machines are (optionally) equipped with pneumatic progressive screen lift (aka forced peel) to aid in quality printing results on large format graphics. All SHELL SERIES silk-screen presses can be (optionally) outfitted with the same servo-driven progressive screen lift device that is found as standard equipment on our NEWMA Series presses.
The SHELL SERIES (clam shell screen print press) machines are equipped with a dual-axis motor controls and the print head pivots the screen frame and print head upward in a scissors like or "clam shell" motion. During set-up mode, the screen press machine operator has the freedom to adjust the print & flood stroke lengths, as well as adjust the screen printers cycle speed. When speed adjustments are made the on-board electronic controls ensure that the entire press is always synchronized and the electronics compensate for any adjustments made by the screen machine operator. This simple clam shell motion provides the operator with an easy method of loading and unloading sheets from this machine.
HIGH POWER VACUUM TABLE Each DYSS SHELL SERIES SCREEN PRINT PRESS is equipped with a high flow vacuum pump that provide super-strong flow for accurate and consistent sheet placement and yields tight color to color registration. As an option, our high flow vacuum tables can be outfitted with retractable location pins for a variety of screen printing applications.
EASY PRESS ADJUSTMENTS For easy set-up, both the squeegee and flood bar controls are outfitted with a set of two linear calibrated cylinders that have set-point marks for fast and accurate squeegee height adjustments. All of our clam shell screen presses have easy to adjust controls and this high quality & economical clam shell screen printing machine is very user-friendly. The touch screen controls are simple to learn with icon graphics on the membrane switch panel (tactile feel keys) allowing for easy running of this Korean built screen print machine.
All mechanical adjustments are positioned within easy reach of the operator/ set-up mechanic and when you need to adjust the vacuum table (off-contact distance) the control handle is located on the front of the silk screen press for easy operator access. Also the squeegee and flood bar are controlled from two sides to allow for precision screen print control.
RUGGED BUILT WORKHORSE The SHELL SERIES starts with a rigid welded steel framed construction and all aspects of these DYSS machines really show the attention to detail. When you build screen print machinery with quality in mind, then the end results really show the excellence. DYSS uses only high quality electrical and pneumatic components, as well as sealed bearings which keeps their machinery running strong for many years to come! If you want a quality machine, then the SHELL SERIES screen printers are the perfect answer.
These servo driven clam shell screen print presses are well suited for printing on GE Lexan panels. banners, overlays, membrane switches, pressure sensitive decals, concert posters, decorative plastic and wood panels, powder coated metal panels and many other screen print applications.
